The Restoration and history of a 1955 Century Coronado 20'
Original restoration 1968 and current restoration 2001-2004
Hull # M55132

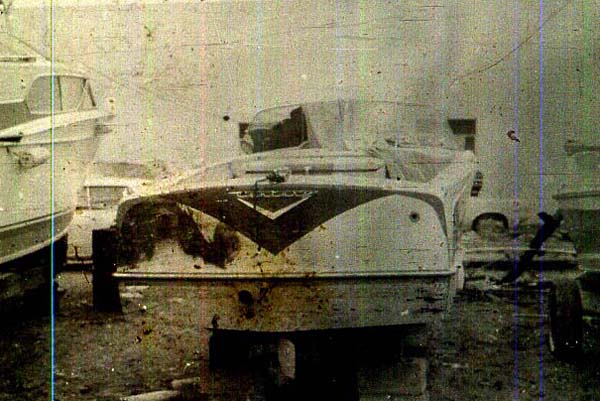

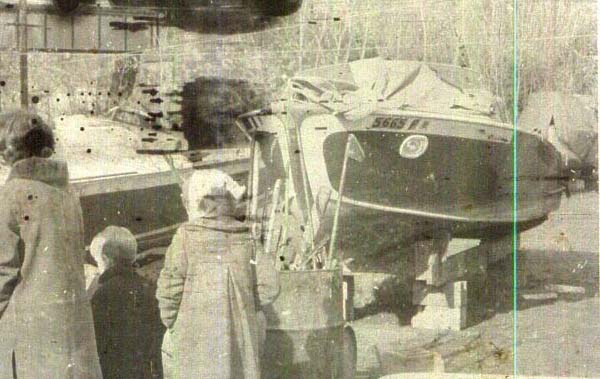

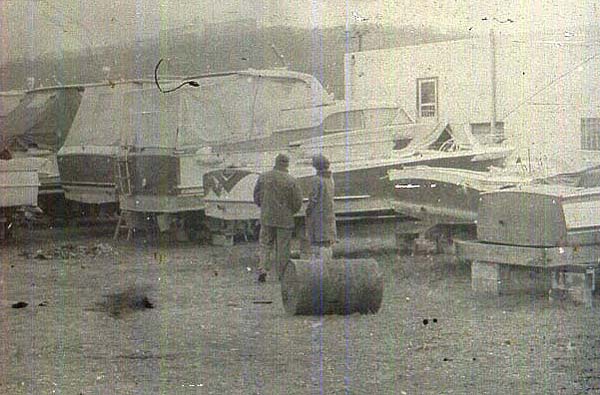

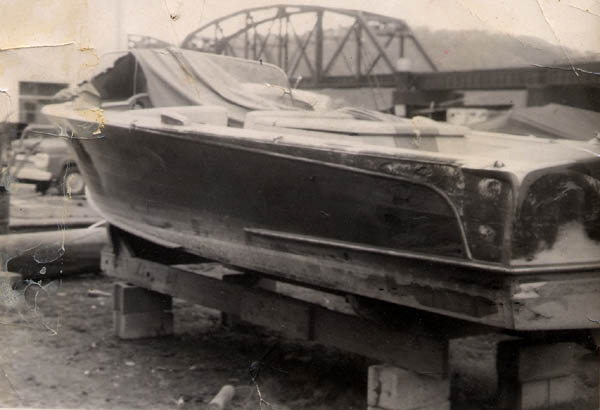

1968 photo after the boat was damaged by a fire. The transom and several other planks were replaced at this time.
1969 After initial restoration.

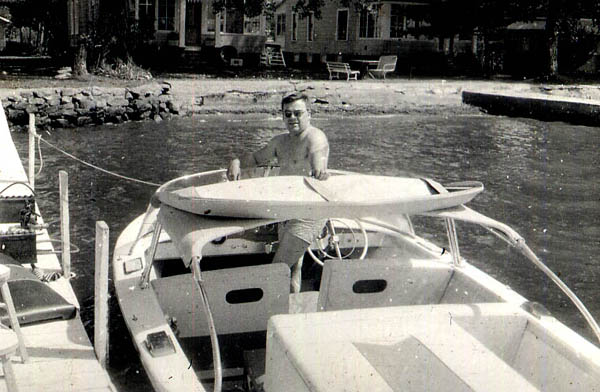

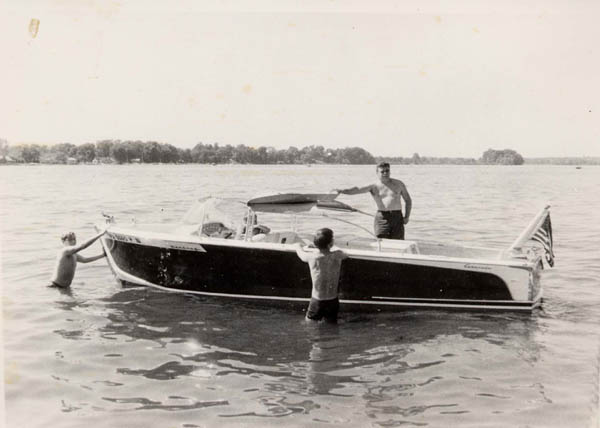

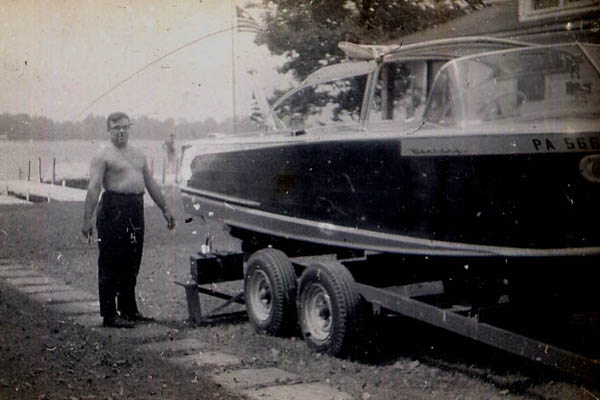

In 1969 making ready for the water.1969 in use with a folding softtop, the dock lights have been airbrushed out of this photo.

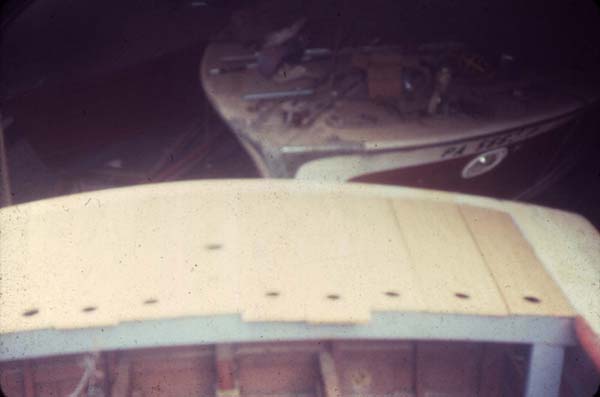

In 1978 behind another boat being restored.

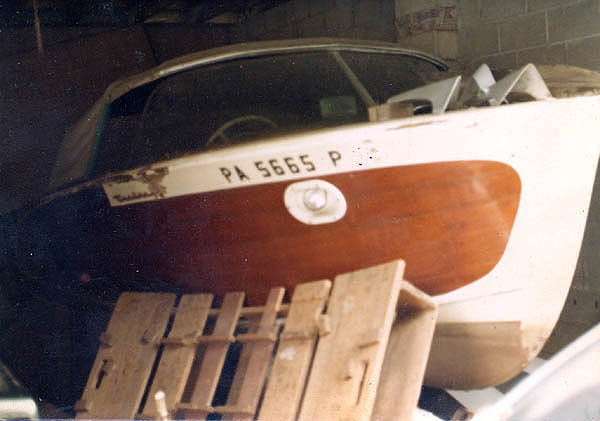

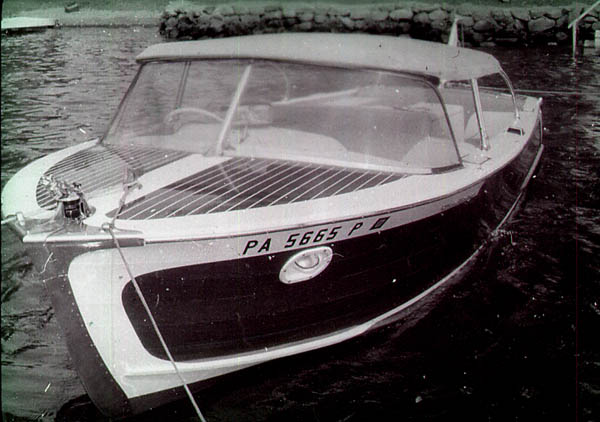

Mid 1980s in storage. The hardtop and 250hp Cadillac engine were installed in 1970. The boat was used until minor damage loading it on a trailer during a flood in June of 1972. The boat then was set outside for a few years. The boat was reaquired in 1974 and was placed in storage where it remained until the restoration was started.
The restoration actually started in 1985 when the boat was stripped. Then it was moved around a few times for storage reasons.

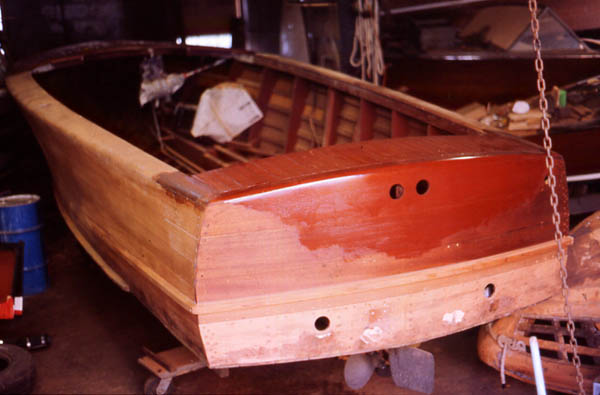

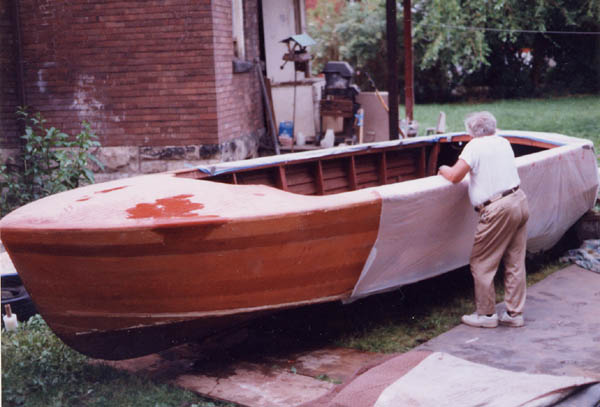

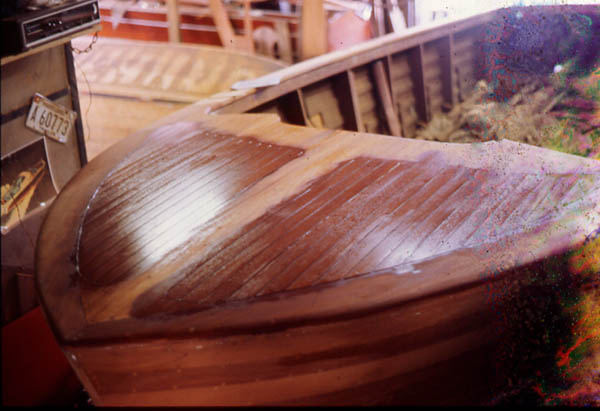

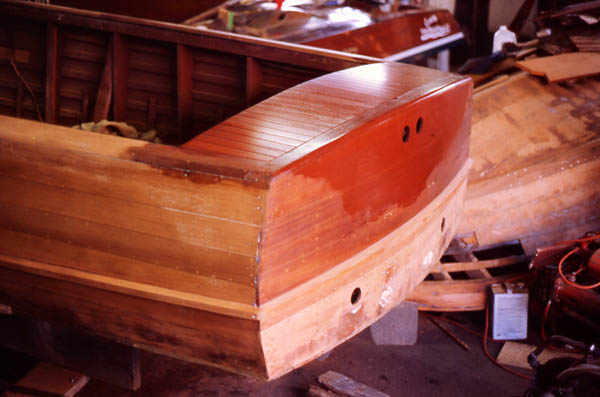

In the mid 1990s it was decided to just refinish the boat with a few new planks. But in 1995 it was decided to remove the dock lights were removed the four planks were replaced. The boat aslo had new decks installed , stained and sealed. The boat is being perpared for rolling over. The fact that this is a personal boat means it was put on the back burner several times.

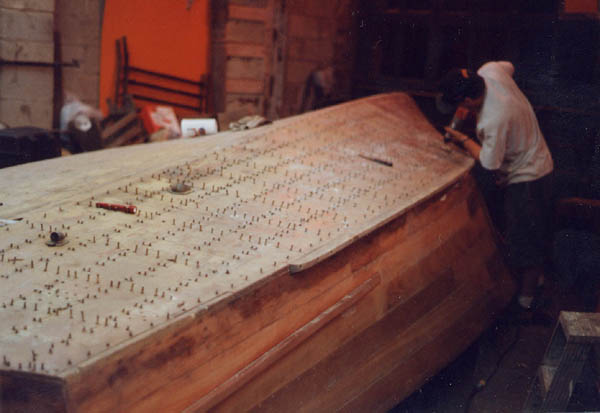

In 1999 it was decided to have a completely trouble free bottom. The bottom would be re-set in 3M 5200. The bottom would be traditional Century bottom but with 5200.Removing the bottom. This is the best way to remove the bottom planking. It takes about 8 hrs but you have great patterns. Many shops cut the bottoms off in pieces, we feel that methood is unprofessional. It also destroys any patterns. Shops that do this usually redesign the bottom.

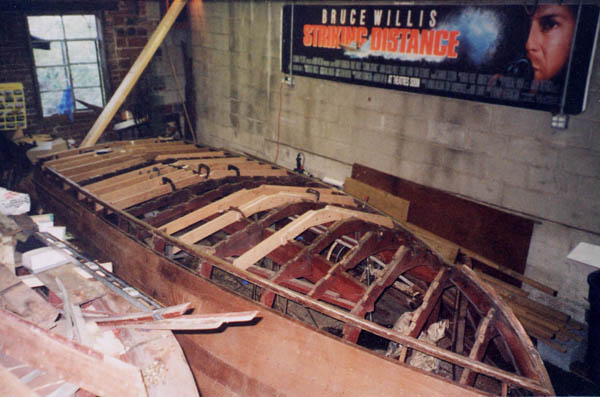

. The bottom removed, now framing can be replaced on at a time.

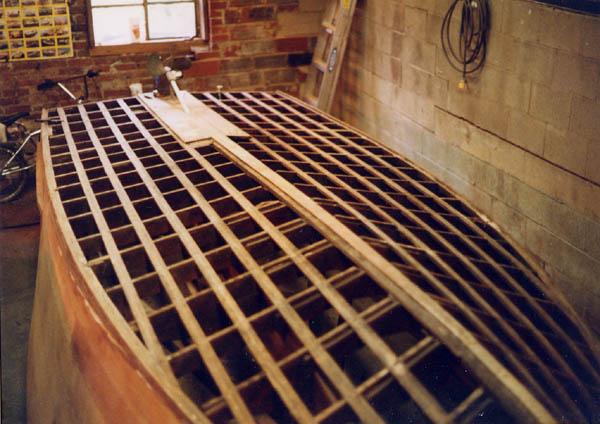

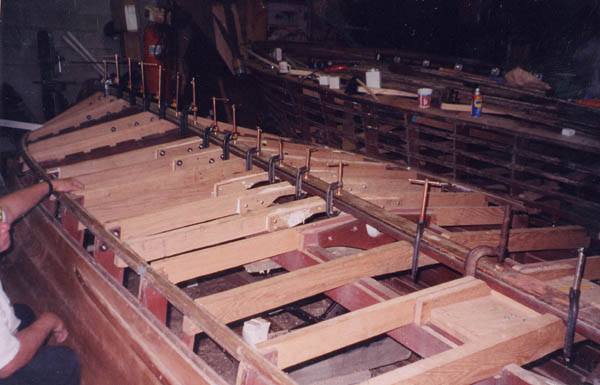

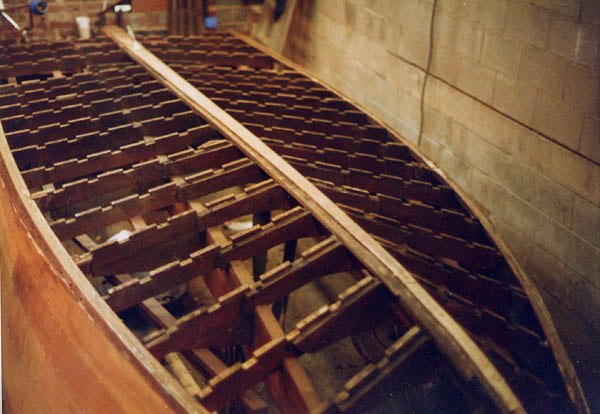

The new frames are installed, next the battens are reinstalled.

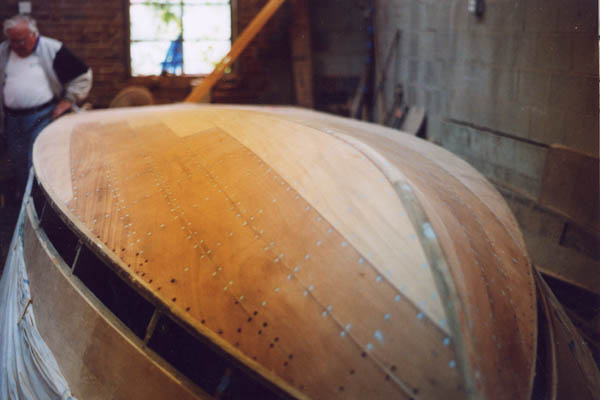

The planking installed.
The bottom sealed with C.P.E.S.

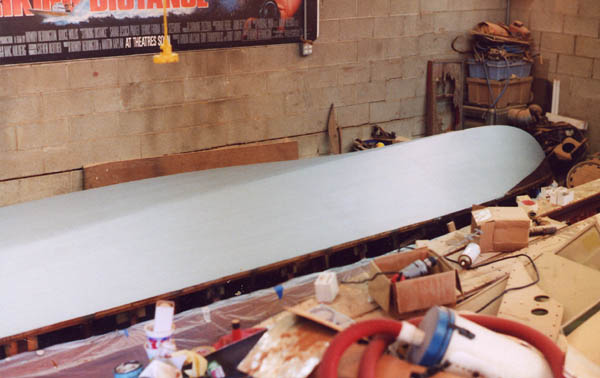

The bottom with primer.
The bottom planks are all reinstalled and painted with hard racing copper bronze bottom paint.

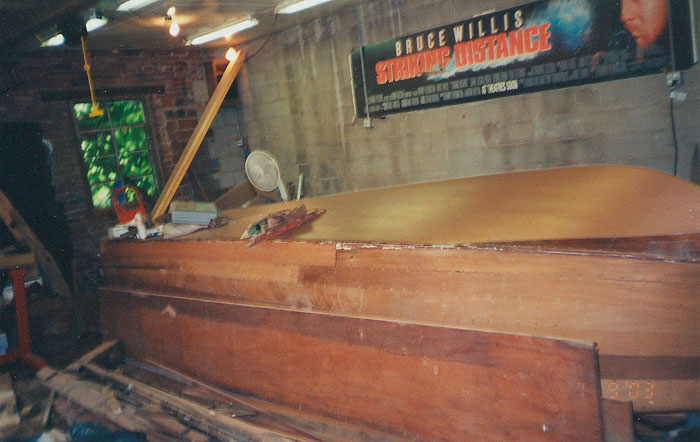

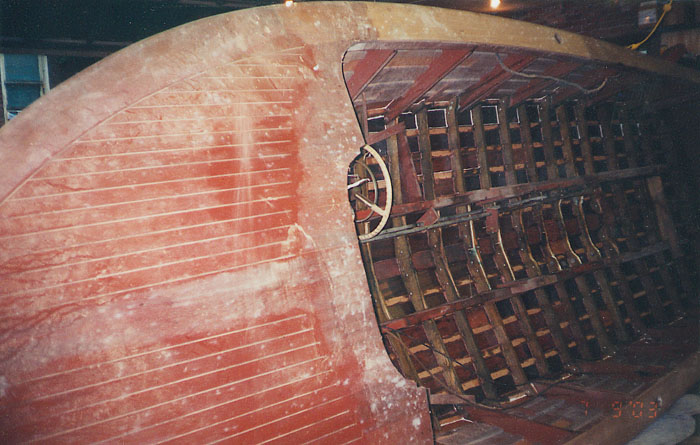

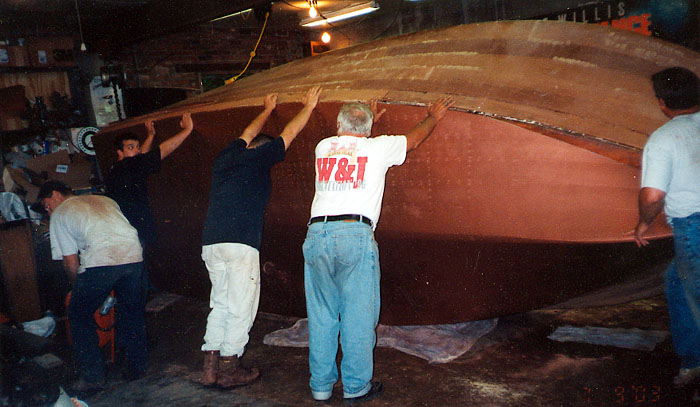

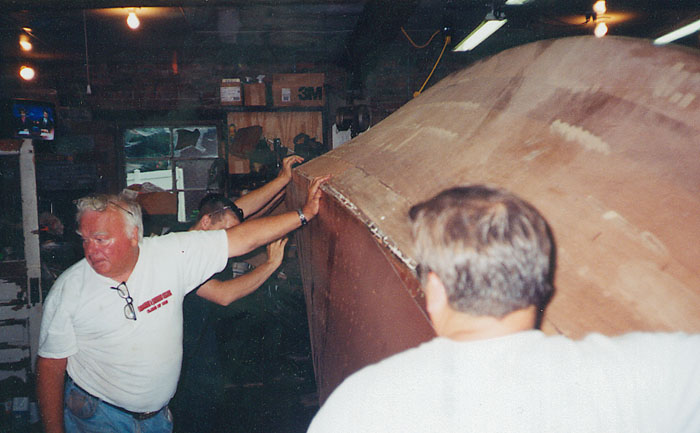

Rolling the boat back upright July 9, 2003
Perparing to paint the white feature. This is a very important step in restoring a Coronado. This step is where many Coronado restorers screw-up!

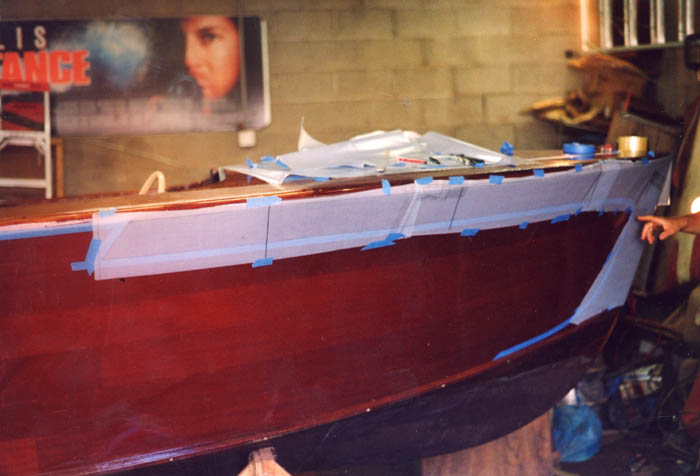

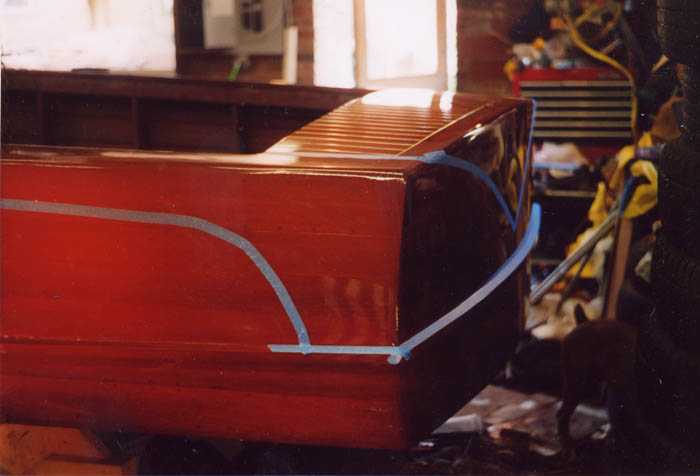

Using paper templates taken before stripping to reestablish the correct line location.
More line work.

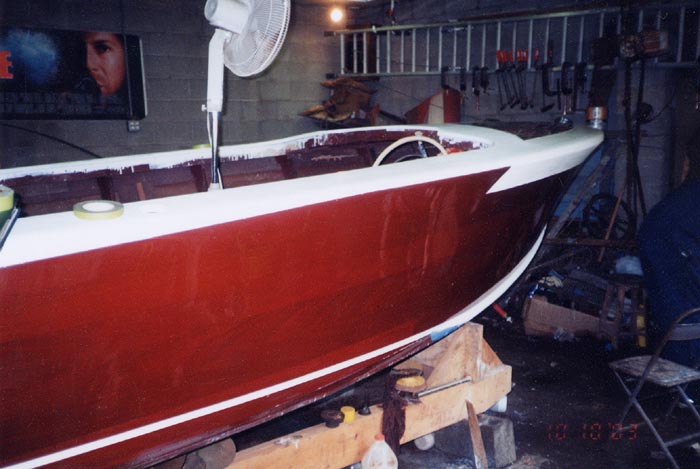

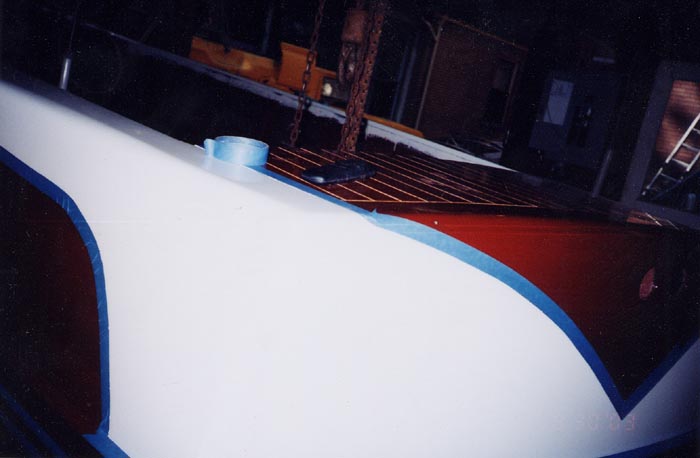

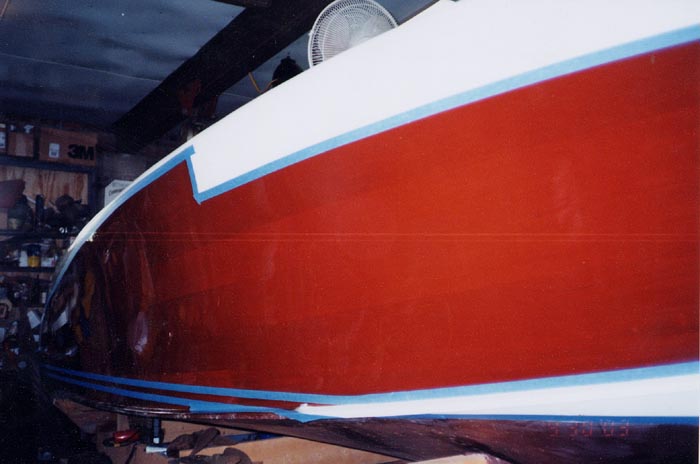

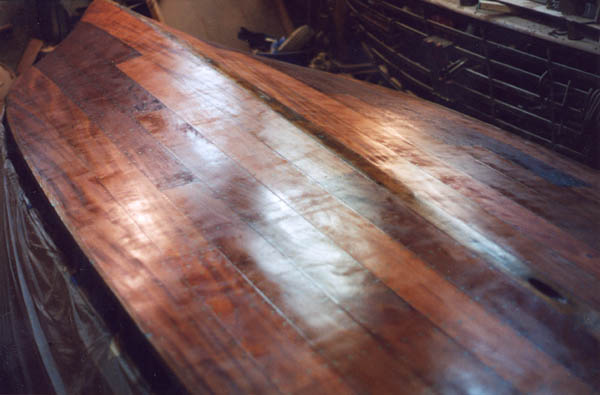

The boat with many coats of varnish and the first coat of white. September 30, 2003. The water line is established with a laser.

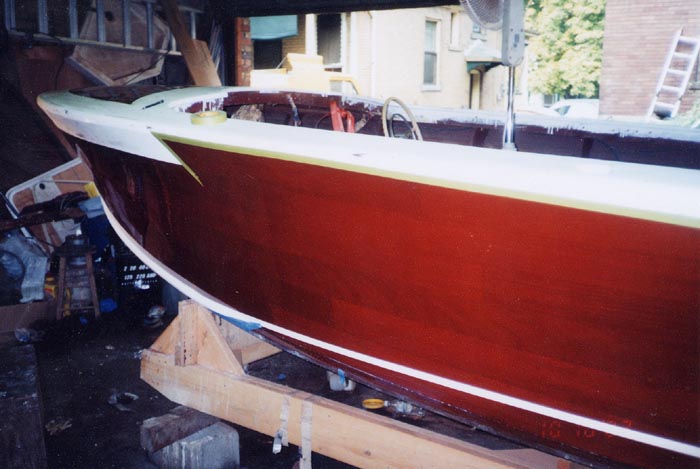

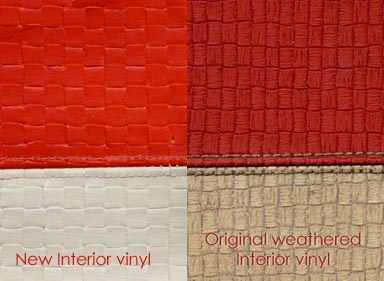

Now with two coats of white over the varnish.We tried to match as close as possible to the original interior samples. Above you can see what we picked.

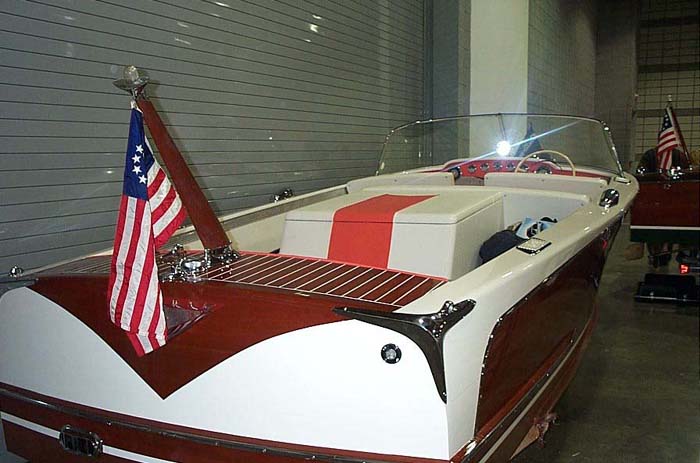

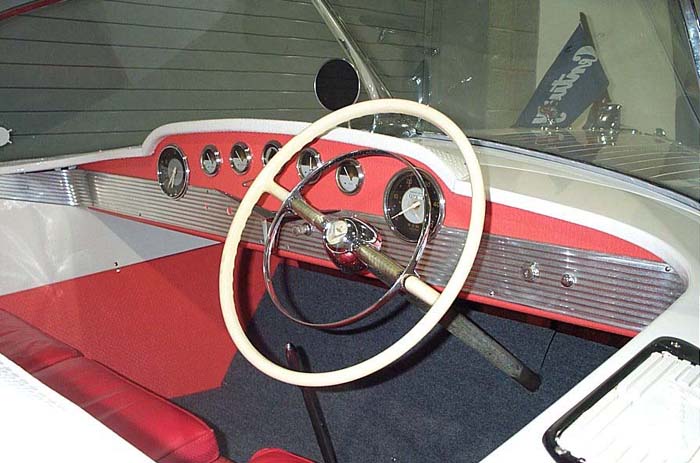

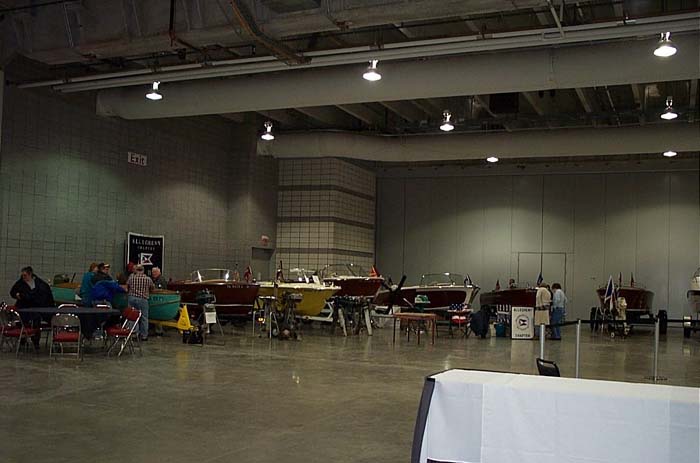

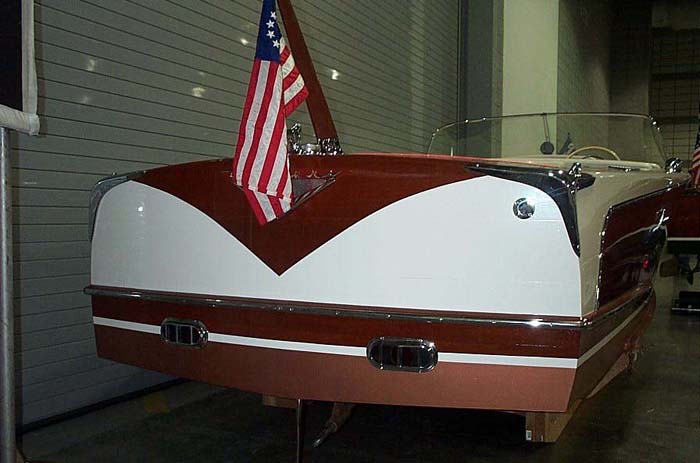

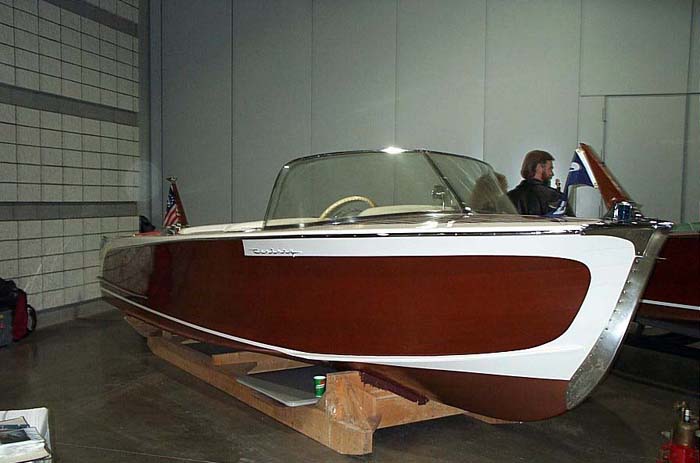

This and the next four photographs are the boat on display at the 2004 Pittsburgh Boat Show. The boat was assembeled the week before just for display purposes.

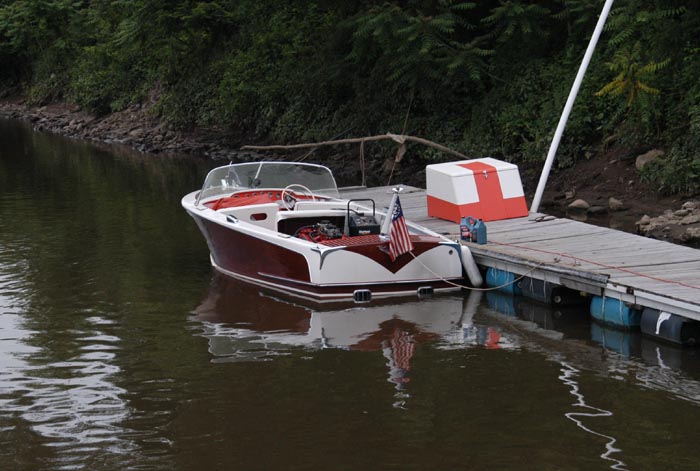

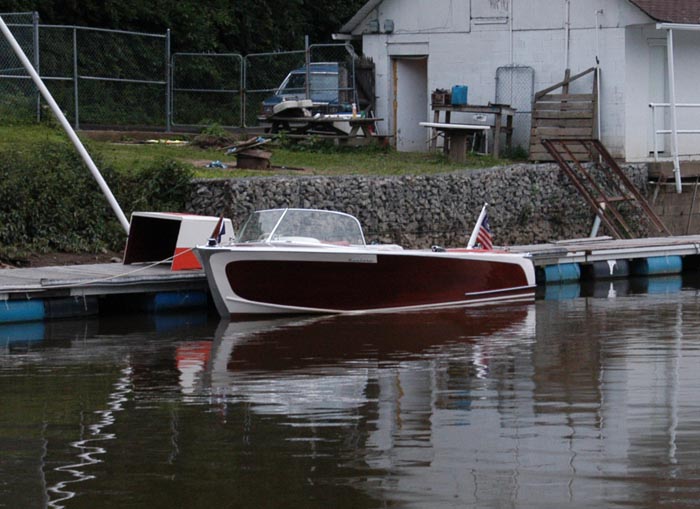

In the water for the first time since 1972. Test running took place on the Beaver River.
Back on Conneaut Lake for the first time since 1969.

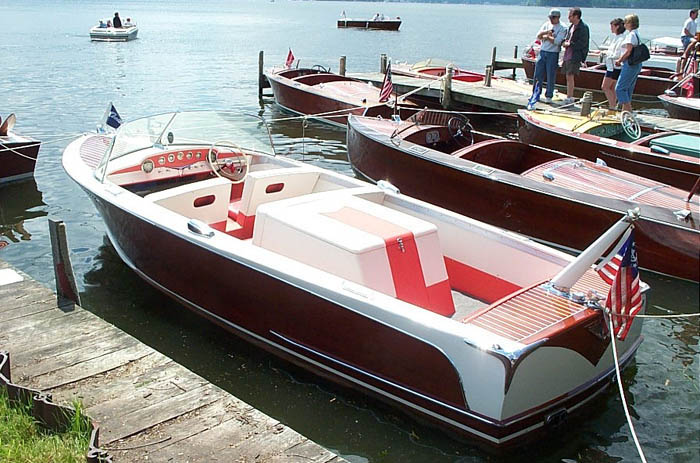

At the Conneaut Lake Classic Boat Show, June 26, 2004

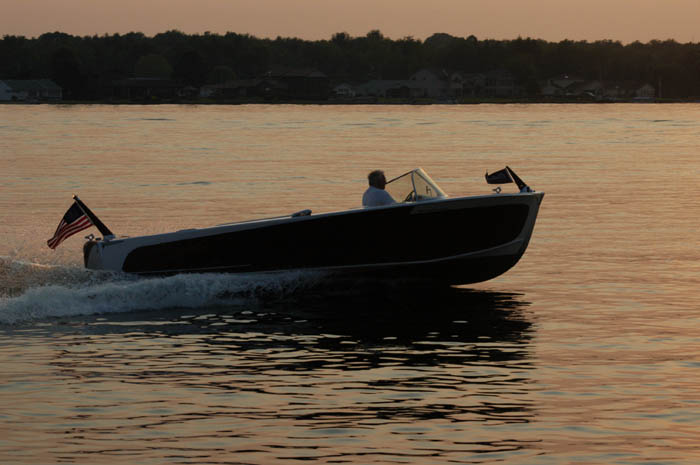

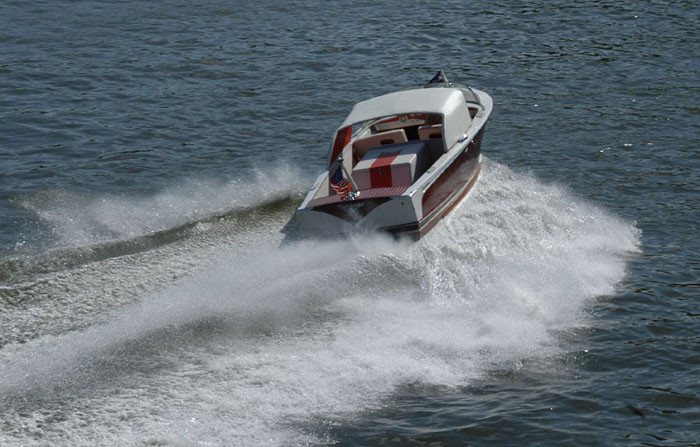

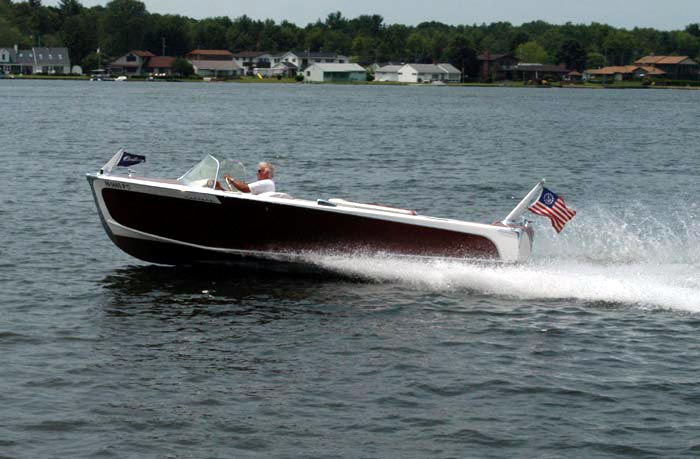

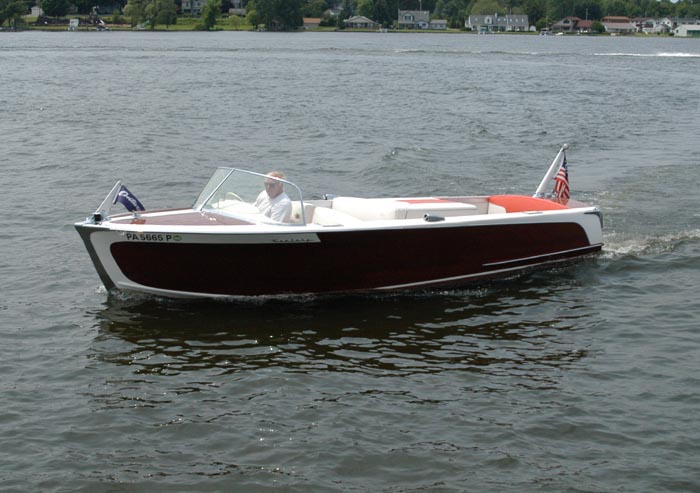

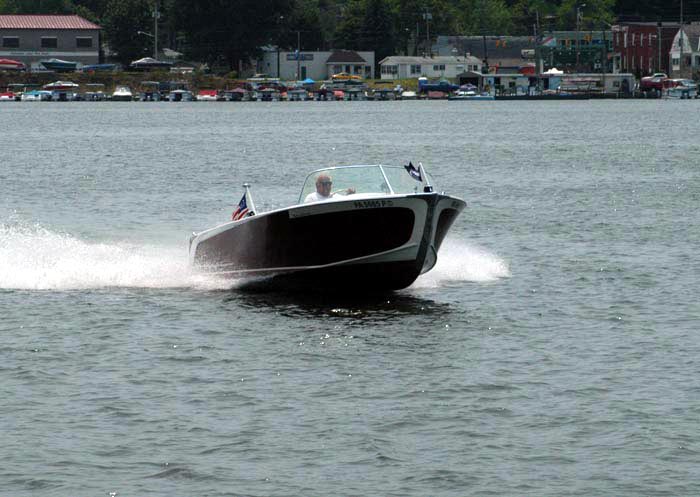

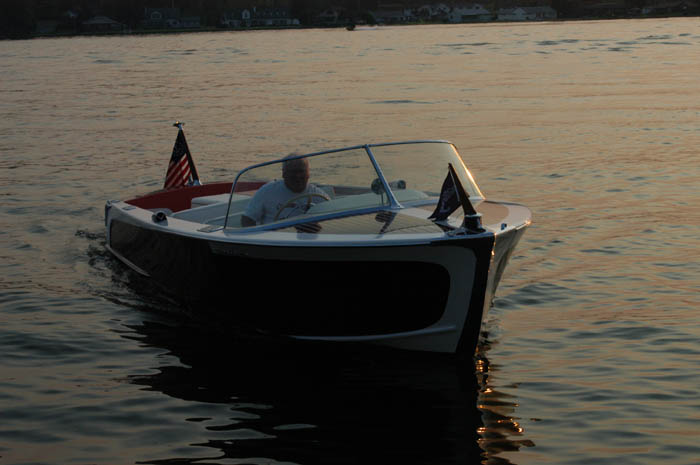

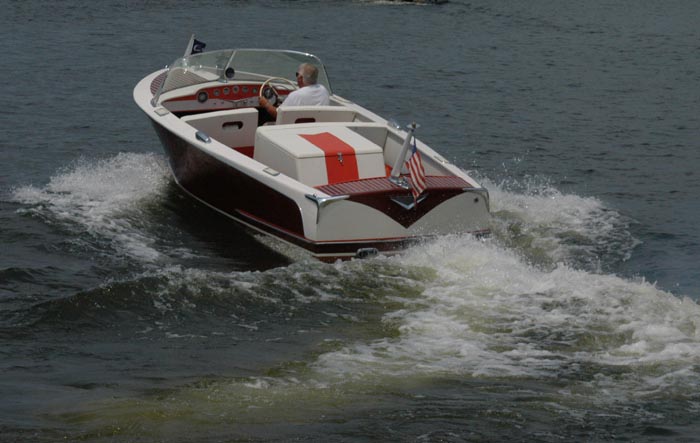

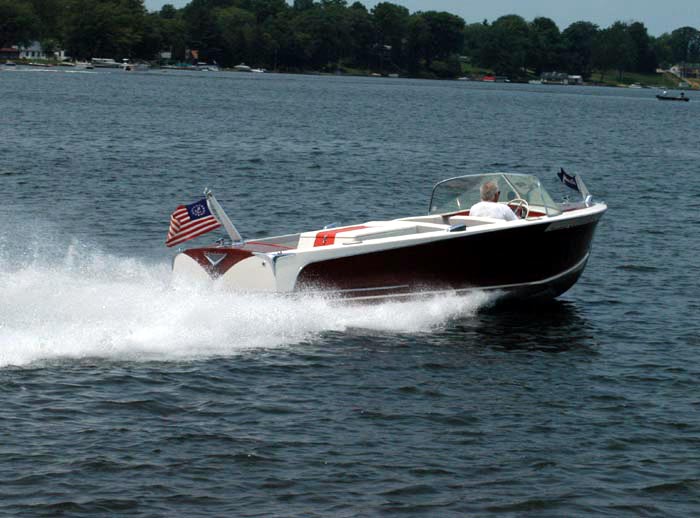

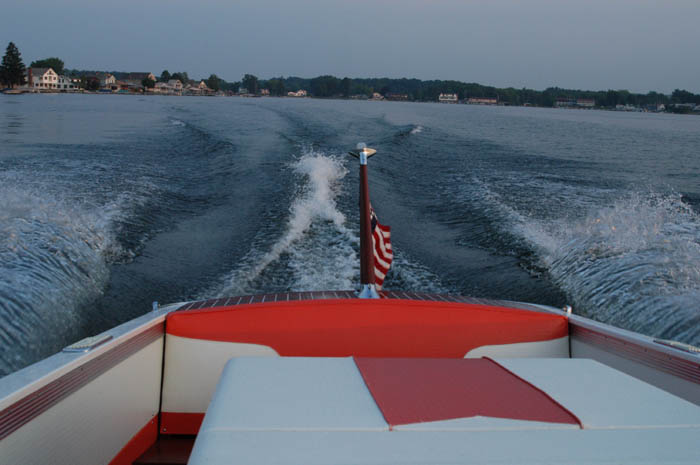

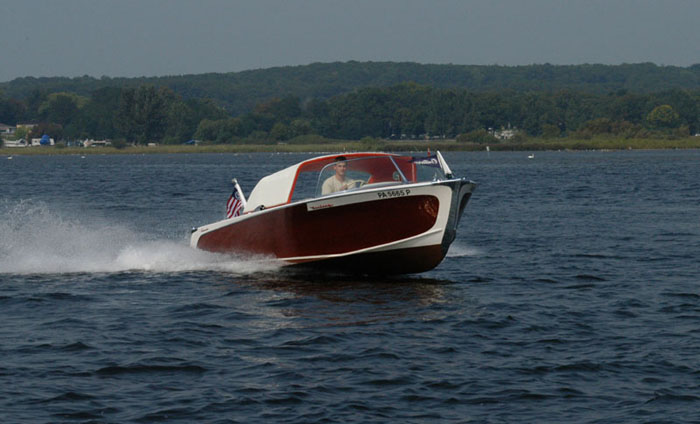

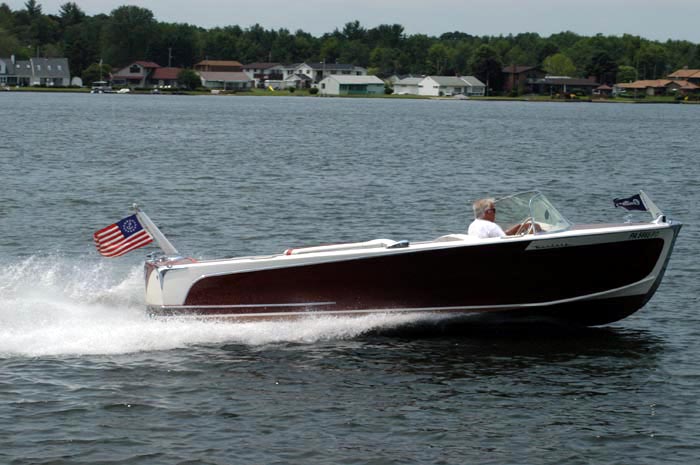

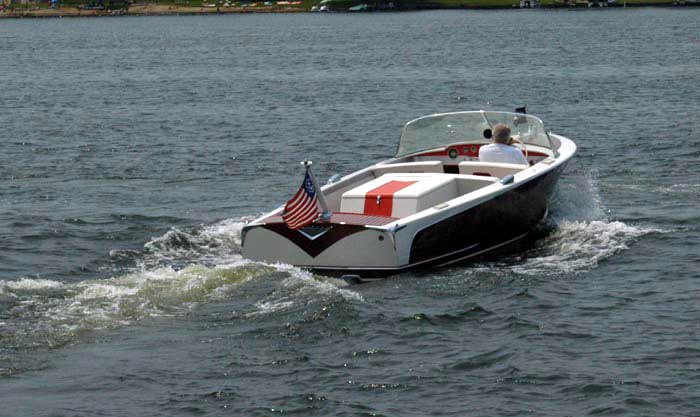

Running on Conneaut Lake. The marina in the background is Reinimans Marina, this boat was sold new from there in 1955.
Just for fun, we set a 1957 Coronado hardtop, that we restored, on this 1955. To see the restoration of this hardtop click here

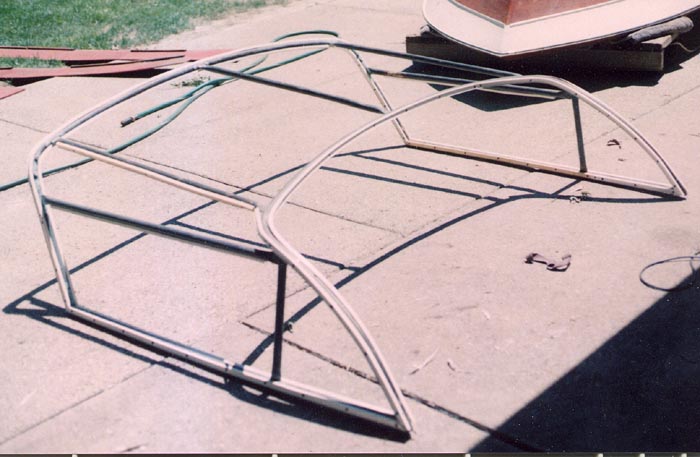

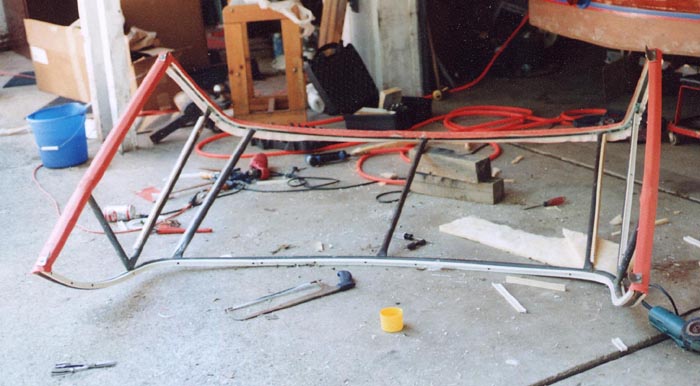

The proper hardtop on the boat without the covering.

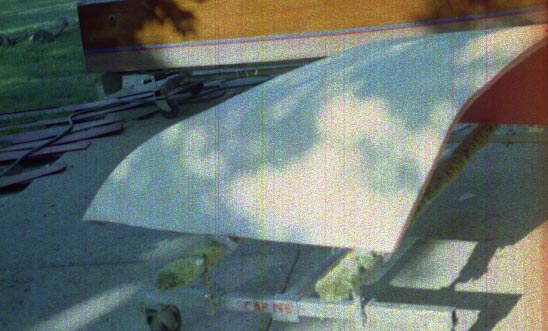

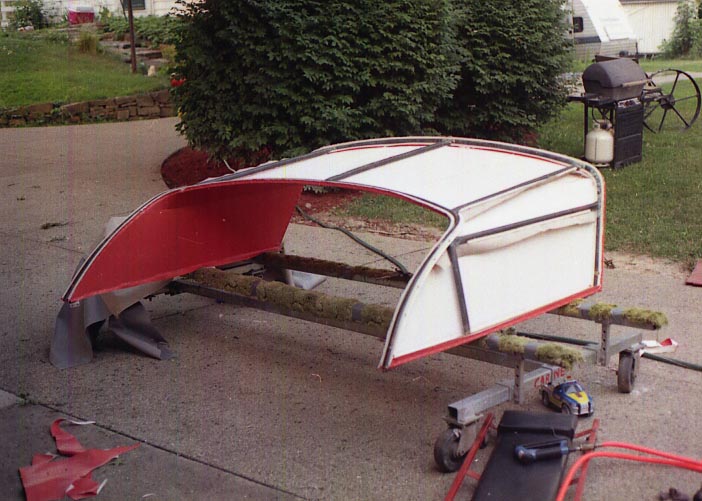

The hardtop with all the new tacking strips installed.

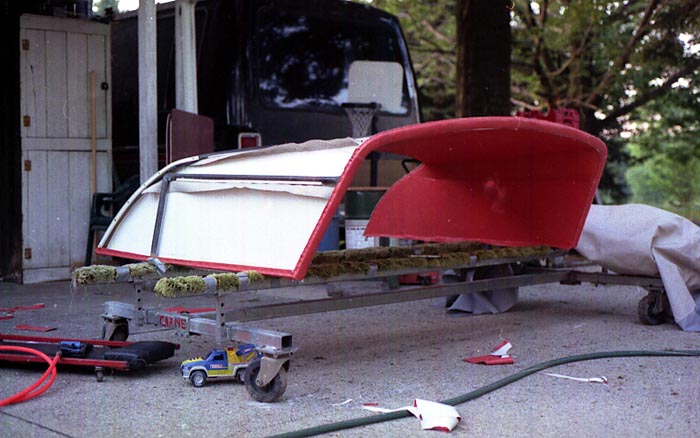

Installing the edge upholstery.
Headliner installed
Canvas layer installed.

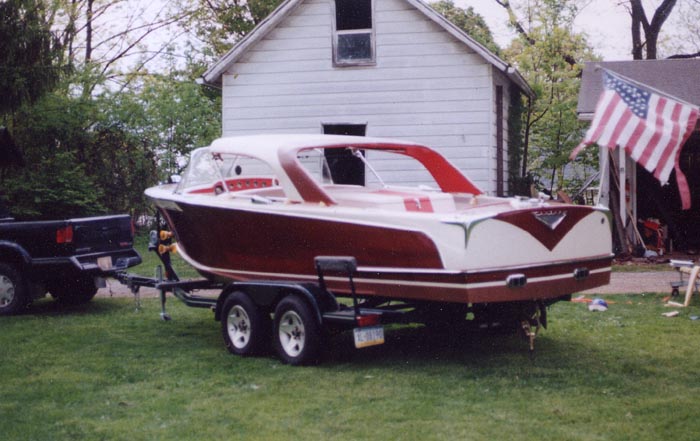

The completed hardtop on the boat.
